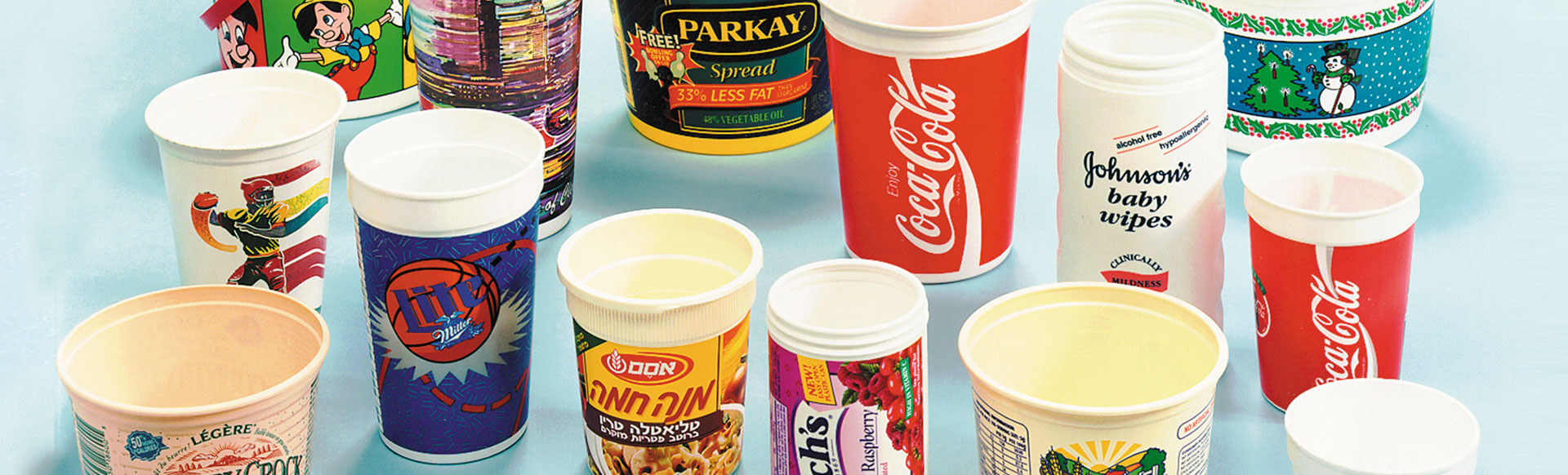

The Desco range of cup and cylindrical container printers are available in various specifications with up to six color printing and the capability to handle straight wall and tapered profiles. We are always happy to make recommendations to suit specific production requirements.
DHSP-5-UVM Five Color
DHSP-5 UVM - Five Color Cup Printer UV Drying on Mandrel
Benefits
- Welded steel construction
- Positive timing throughout machine
- Perfect register printing up to five colors
- Complete vacuum system provided
- Swing-away ink roll sections
- Variable speed DC drive
- Completely automated systems
- Ultraviolet curing of ink while container is on mandrel
Accessories & Options
- Magnetic or pin bar clamp plate cylinders
- Orientation system
- Flamer or corona pre-treating system
- Inventory stack feed system
- Automatic re-stack and count system
- UV cure on mandrel system
- Programmable logic control
- Status indicator
Specifications |
|
|---|---|
| Maximum container diameter | 6.5" (165mm) |
| Maximum container height | 8" (203mm) |
| Maximum printing height | 6" (152mm) |
| Maximum printing length - magnetic - pin bar |
18.5" (470mm) 16" (406mm) |
| Maximum taper | 17° per side |
| Power | As required |
| Weight of basic machine | 7,500 lbs. |
DHSP-6-UVM Six Color
DHSP-6 UVM - Six Color Cup Printer UV Drying on Mandrel
Benefits
- Positive timing throughout machine
- Anti-backlash helical plate cylinder gears
- Micro lateral and radial plate cylinder adjustments while machine is operating (running register)
- Variable speed ink fountain
- Swing-away ink roll section
- Vacuum system supplied
- Quick change-over
- Full electronic control and monitor through P.L.C. and diagnostic display
Accessories & Options
- Magnetic or clamp type plate cylinders
- Flame or corona treater
- Orientor system
- Vacuum destaticizer
- Automatic feeder
- Automatic restacker with counter
- U.V. on mandrel drying
- Infrared drying
Specifications |
|
|---|---|
| Maximum container diameter | 6.5" (165mm) |
| Maximum container height | 8" (203mm) |
| Maximum printing height | 6" (152mm) |
| Maximum printing length - magnetic - pin bar |
18.5" (470mm) 16" (406mm) |
| Maximum taper | 15° per side |
| Power | As required |
| Weight of basic machine | 7,500 lbs. |
DHSP-6L-UVM Six Color
DHSP-6L UVM - Six Color Cup Printer The most efficient & economical system for 6 color print on cylindrical containers
Benefits
- Positive timing throughout machine
- Anti-backlash helical plate cylinder gears
- Micro lateral and radial plate cylinder adjustments while machine is operating (running register)
- Variable speed ink fountain
- Swing-away ink roll section
- Vacuum system supplied
- Quick change-over
- Full electronic control and monitor through P.L.C. and diagnostic display
Accessories & Options
- Magnetic or clamp type plate cylinders
- Flame or corona treater
- Orientor system
- Vacuum destaticizer
- Automatic feeder
- Automatic restacker with counter
- U.V. on mandrel drying
- Infrared drying
Specifications |
|
|---|---|
| Maximum container diameter | 8.25" (210mm) |
| Maximum container height | 10" (254mm) |
| Maximum printing height | 9" (235mm) |
| Maximum printing circumference - magnetic - pin bar |
24.75" (628mm) 21" (533mm) |
| Maximum taper | 15° |
| Power | As required |
DHSP-6H-UVM Six Color
DHSP-6H - Six Color Cup Printer The most efficient & economical system for 6 color print on cylindrical containers
Benefits
- Welded steel construction
- Positive timing throughout machine
- All adjustments on operator side
- All adjustments are precise and enables printing of half-tones and process
- Micrometer lateral and radial plate cylinder adjustments can be made while press is operating (running register)
- Anti-backlash helical gears throughout
- Swing-away roll section for access to plate cylinders
- Programmable logic control
- Variable speed ink fountain control
Accessories & Options
- Magnetic or clamp type plate cylinders
- Flame or corona treater
- Static neutralizer and vacuum cleaner
- Automatic feeders
- Automatic restackers
- Overvarnish station
- Product orientation
- Ultraviolet or infrared drying
- 12,16, or 24 mandrels
- Hold-on device
Specifications |
|
|---|---|
| Maximum container height | 10" (254mm) |
| Maximum printing height | 9.25" (235mm) |
| Maximum printing circumference - magnetic - pin bar |
18.5" (470mm) 16" (406mm) |
| Maximum taper | 15° |
| Power | As required |
